Rear boom lower rotation (PSHXZ)

Product description:

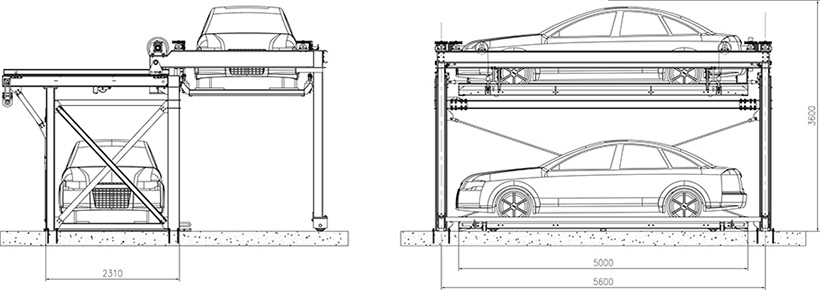

There are two parking spaces on the upper and lower floors. The upper parking space can pick up the car. If there is no car on the lower deck, it can be parked directly on the lower deck. If there is a car on the lower deck, the lower parking space will rotate longitudinally to the aisle, and the upper deck will drop to the ground, and the vehicle can be Free entry and exit; parking on the lower floor can be directly stored;

1. [Maximize the use of space, one more parking space than lifting and traversing]
2. [Modular design, flexible use form]
3. [Flexible layout, convenient combination, reasonable organization, safe and reliable]
4. [The installation height requirements are low, and the net height under the beam can be installed at 3250mm (ordinary equipment needs 3600mm]

Project Unit Technical performance parameters
Parkable vehicles length × width × height mm Upper deck parking space: ≤5000×1850×1550
Ground parking space: ≤5000×1850×1550
Weight kg Upper deck parking space: ≤2000
Lower parking space: ≤2000
Rated speed Lift m/min 5
Traverse m/min 8
Lift kw 2.2
Motor power
Traverse kw 0.2
Drive mode Motor+chain
Operation method Keys/touch screen
Control mode PLC automatic control loop
Power supply 3N, AC, 380V, 50Hz
